NOTE: OUR FREEDOM 4 BIKE CARAVAN RACK AND CAR MOUNT KIT ARE ON BACK ORDER UNTIL MID MARCH

FREEDOM 2 BIKE CARAVAN RACK - TOOL BOX MOUNT

THIS BIKE RACK CAN BOLT DIRECTLY TO YOUR CARAVAN TOOL BOX. A SUPER SIMPLE SIMPLE SOLUTION FOR CARRYING BIKES ON YOUR CARAVAN.

WATCH ASSEMBLY VIDEO

INFORMATION FOR YOU

  • SIMPLE BOLT ON

    OUR TOOLBOX MOUNT IS DESIGNED TO BOLT DIRECTLY TO YOUR TOOLBOX. IT FEATURES 4 MEDIUM DENSITY RUBBER PADS TO REMOVE VIBRATION, OUR 5 POINT STRAPPING SYSTEM AND CAN BE USED IN CONJUNCTION WITH OUR LOADING RAMP AND CAR MOUNT KIT.

    IT IS A HEAVY DUTY, AND DESIGNED TO SUIT E BIKES, ROAD BIKES AND KIDS BIKES.

    CHECK OUT THE FITTING GUIDE BELOW TO SEE IF IT WILL FIT YOUR TOOLBOX.

  • ASSEMBLY VIDEO

    ASSEMBLY OF THE TOOLBOX MOUNT BIKE RACK IS VERY SIMPLE.

    NOTE: IF USING THE LOADING RAMP AND HAVE A VERY WIDE TOOLBOX, YOU MAY NEED TO MOUNT THE RACK OFF-CENTRE FOR THE RAMP TO CONNECT.

    NOTE: YOU NEED TO ENSURE YOUR TOOLBOX CAN HOLD THE WEIGHT OF THE BIKE RACK PLUS YOUR BIKES. AN INTERNAL STRUCTURE MAY NEED TO BE ADDED.

    ASSEMBLY VIDEO

  • SPECIFICATIONS

    • 2 BIKES ONLY
    • WEIGHT IS 16KG
    • SUPPORTS E-BIKES UP TO 40KG EACH
    • POWDER COATED IN A DULUX SCRATCH RESISTANT 'PRO TEXTURE' FINISH
    • 1400MM WIDE AND 416MM DEEP
    • CAN BE FITTED TO UTE TRAYS
    • MADE FROM MILD STEEL (PIVOT BRACKET) AND STRUCTURAL ALUMINIUM (6061 GRADE)

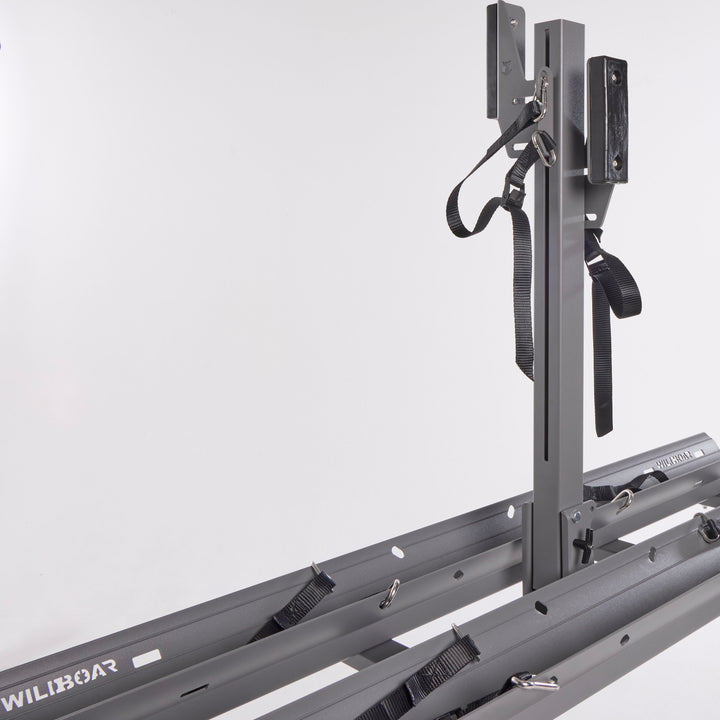

    • FEATURES 5 POINT STRAP SYSTEM
    SEE FITTING GUIDE
1 10

Freedom 2 Bike Caravan Rack - Tool Box Mount

Wild Boar Bike Racks  |  SKU: FR2TOOLBM
$950.00
Tax included

Delivery and Shipping
  • FREE FREIGHT FOR ORDERS OVER $600
  • SHIPS WITHIN 24 HOURS WHEN IN STOCK
  • WILL BE MARKED TO LEAVE IN A SAFE PLACE IF NOBODY IS HOME

Add a stand out message for your customers

Description

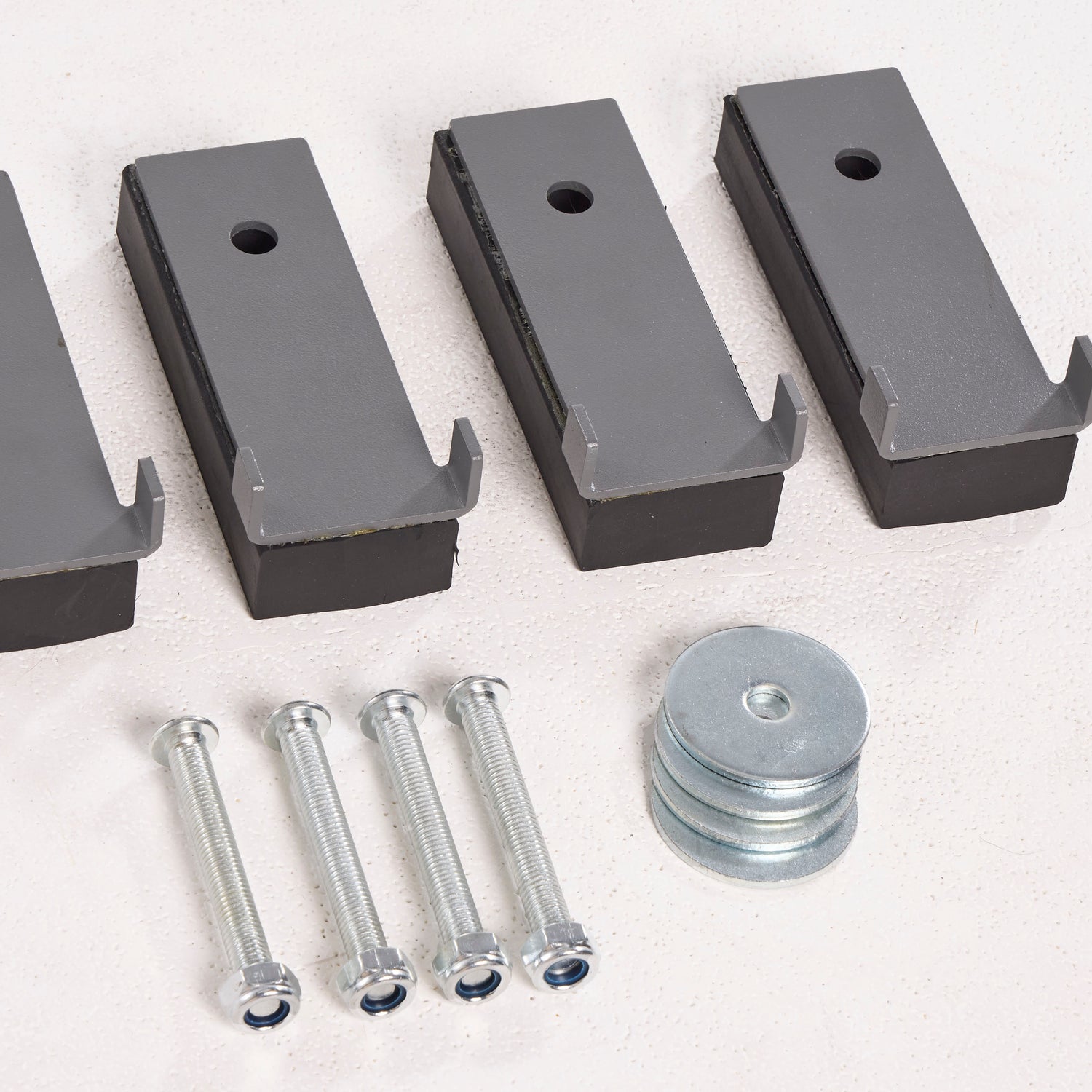

Our new Freedom 2 Bike Rack - Tool Box Mount is a great solution for mounting your bike rack directly on top of your caravans tool box. We provide 4 high density rubber pads, and 4 large bolts with a plate washer to mount the Freedom Rack to your toolbox.  The high density rubber will limit vibration, and provide a soft ride for your bike rack.

The rack is help in place with 4 x M10 80mm bolts. You simply only need to drill through the top of your tool box to mount the rack. See our fitting guide on this page for more information.

Weight: 16kg

NOTE:  Ensure your tool box can support the weight of the bike rack plus bikes. An internal structure maybe required to support the weight. You are responsible to ensure
your toolbox can support the weight.

NOTE: Minimum tool box size for mounting is 1200mm x 353mm.

NOTE: USE OF A BIKE COVER NOT RECOMMENDED DURING TRAVEL. IF USING A BIKE COVER WHILST TRAVELLING, ENSURE IT ALLOWS VENTILATION OF WIND THROUGH THE COVER AND IS NOT A SOLID MATERIAL. SOLID BIKE COVERS PUT EXTREME PRESSURE ON THE BIKE RACK AND WILL CAUSE DAMAGE, VOIDING YOUR WARRANTY.
