OUR BIKE RACKS

OUR SYSTEM FEATURES 6MM LASER CUT STEEL MOUNT PLATES THAT ACT AS A GUIDE FOR THE VERTICAL SUPPORT POLE, AND REDUCE ANY SIDE MOVEMENT WHILST TRAVELLING. COMBINED WITH THE M12 U BOLT - THIS HEAVY DUTY MOUNT WILL HOLD YOUR BIKE RACK SECURE OVER THE TOUGHEST TERRAIN. SUITS DRAWBAR SIZES FROM 50 X 75MM TO 50 X 150MM.

WE PROVIDE A WELDED STOP POSITION AND LOCATOR THAT KEEPS THE VERTICAL SUPPORT PLACE FROM MOVING DOWNWARDS, AND HELPS TO LOCATE IT.

FOR ADDED PEACE OF MIND, YOU CAN USE THE SAFETY PIN, WHICH PREVENTS THE VERTICAL SUPPORT BARS FROM BEING REMOVED.

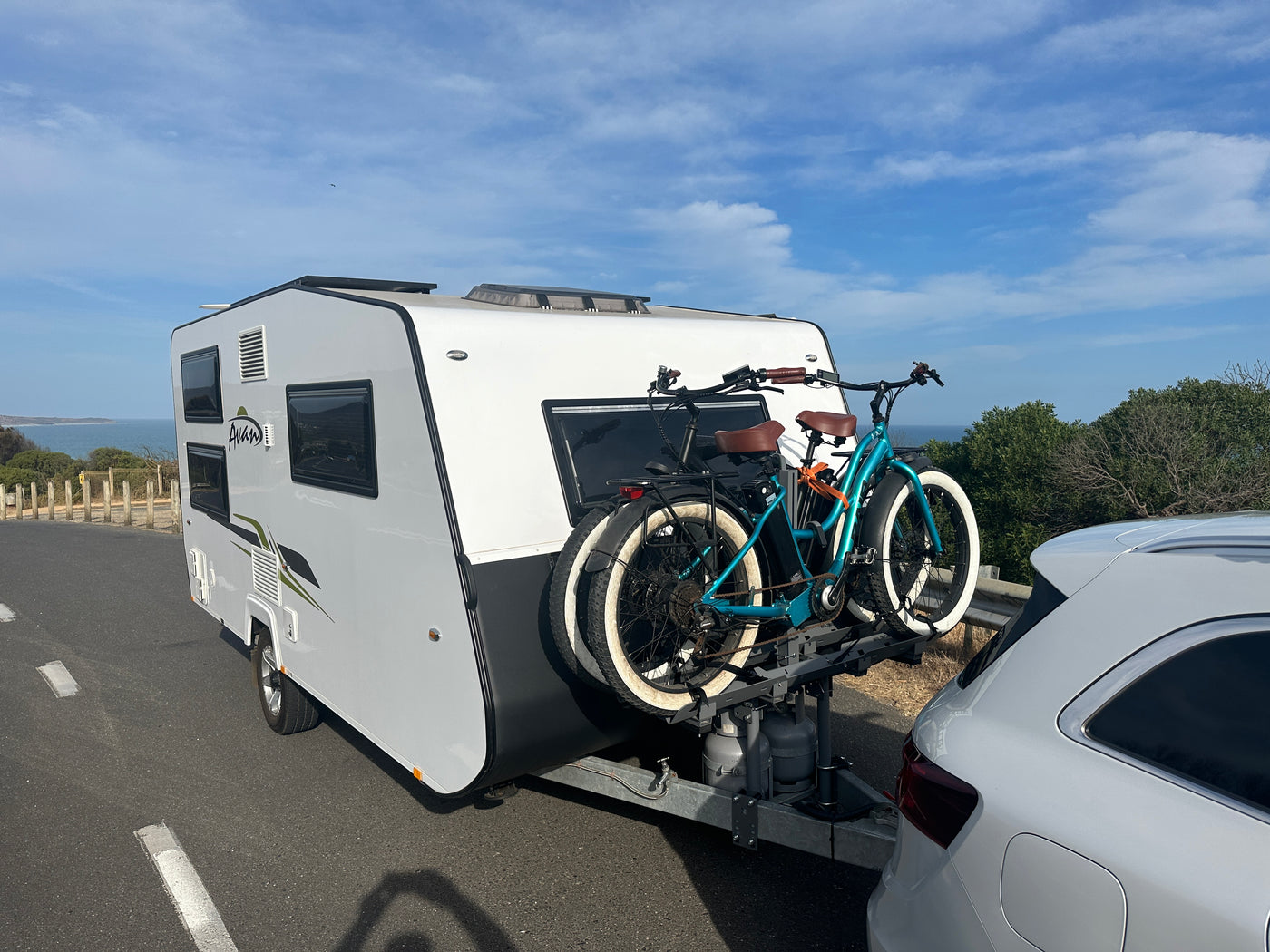

OUR FREEDOM 2 & 4 BIKE RACKS ARE DESIGNED AS A DIY (DO IT YOURSELF) INSTALL. AS IT BOLTS DIRECTLY TO YOUR DRAWBAR (A-FRAME) WITH OUR SUPER HEAVY DUTY MOUNT SYSTEM, YOU DO NOT NEED TO WELD IN PLACE ANY STRUTS ACROSS YOUR CARAVAN. WATCH OUR ASSEMBLY VIDEO HERE.

THIS BRACKET WILL 'OFFSET' OR POSITION THE BIKE RACK 223MM FROM THE CENTRE OF THE VERTICAL SUPPORT BARS. IT ALLOWS YOU TO BOLT THE VERTICAL SUPPORT BARS IN FRONT OF STONE GAURDS OR GAS BOTTLES, YET POSITION BIKE OVER THE TOP OF THEM.

OUR FREEDOM 2 BIKE RACK ALSO INCLUDES THE STANDARD TILT BRACKET. THIS BRACKET IS IDEAL WHEN YOU WANT TO POSITION THE BIKE RACK DIRECTLY OVER THE TOP OF THE VERTICAL SUPPORT BARS.

OUR 4 BIKE BRACKET IS SUPER HEAVY DUTY AND DESIGNED TO CARRY THE WEIGHT OF 4 BIKES.

THE WIDE V BRACKET IS DESIGNED TO SEPERATE THE BIKES AND ALLOW EASY LOADING. WE RECOMMEND THIS RACK TO ONLY BE USED ON CARAVANS WITH LONG DRAWBARS.

• SUITS E-BIKES UP TO 30 KG EACH
• TILTS TO ALLOWS EASY REMOVAL OF GAS BOTTLES ETC.
• FINISHED IN SCRATCH RESISTANT DULUX BASALT GREY 'PRO TEXTURE' POWDER COAT
• WEIGHS 22KG WHEN USING TILT BRACKET
• WEIGHS 24 KG WHEN USING OFFSET BRACKET

NEED MORE HELP?

WE HAVE AN EXTENSIVE INFORMATION VIDEO TO HELP YOU UNDERSTAND OUR BIKE RACK.

THIS VIDEO IS EXCLUSIVELY FOR THE FREEDOM 2 & 4 DRAWBAR MOUNT BIKE RACK

OUR TOOLBOX MOUNT IS DESIGNED TO BOLT DIRECTLY TO YOUR TOOLBOX. IT FEATURES 4 MEDIUM DENSITY RUBBER PADS TO REMOVE VIBRATION, OUR 5 POINT STRAPPING SYSTEM AND CAN BE USED IN CONJUNCTION WITH OUR LOADING RAMP AND CAR MOUNT KIT.

IT IS A HEAVY DUTY, AND DESIGNED TO SUIT E BIKES, ROAD BIKES AND KIDS BIKES.

CHECK OUT THE FITTING GUIDE BELOW TO SEE IF IT WILL FIT YOUR TOOLBOX.

ASSEMBLY OF THE TOOLBOX MOUNT BIKE RACK IS VERY SIMPLE.

NOTE: IF USING THE LOADING RAMP AND HAVE A VERY WIDE TOOLBOX, YOU MAY NEED TO MOUNT THE RACK OFF-CENTRE FOR THE RAMP TO CONNECT.

NOTE: YOU NEED TO ENSURE YOUR TOOLBOX CAN HOLD THE WEIGHT OF THE BIKE RACK PLUS YOUR BIKES. AN INTERNAL STRUCTURE MAY NEED TO BE ADDED.

• 2 BIKES ONLY
• WEIGHT IS 16KG
• SUPPORTS E-BIKES UP TO 40KG EACH
• POWDER COATED IN A DULUX SCRATCH RESISTANT 'PRO TEXTURE' FINISH
• 1400MM WIDE AND 416MM DEEP
• CAN BE FITTED TO UTE TRAYS
• MADE FROM MILD STEEL (PIVOT BRACKET) AND STRUCTURAL ALUMINIUM (6061 GRADE)
• FEATURES 5 POINT STRAP SYSTEM

OUR OPTIONAL CAR MOUNT KIT ALLOWS YOU TO USE THE FREEDOM 2 BIKE CARAVAN RACK ON YOUR CAR - FOR WHEN YOU WANT TO EXPLORE WITHOUT USING THE VAN.

SUITABLE ONLY FOR THE FREEDOM 2 BIKE CARAVAN RACKS.

OUR CAR MOUNT KITS SUITS ALL 50MM HITCH RECEIVERS, AND HAS A ANTI-WOBBLE MECHANISM INCLUDE, AND IS DESIGNED TO HANDLE TO THE ROUGH AND TUMBLE.

NEED HELP TO LOAD BIKES? OUR RAMP ALSO WORKS WELL IN EITHER COMPRESSED OR FULLY OPEN MODE. .

TO USE - SIMPLY UNBOLT YOUR FREEDOM CARAVAN BIKE RACK FROM YOUR OFFSET OR TILT BRACKET BY UNDOING THE 2 X U BOLTS. ATTACH TO YOUR CAR MOUNT KIT AND THEN RE-ATTACH. SIMPLE.

NOTE: PREVIOUS MODEL PICTURED

OUR NEW CROSS BAR STRAPPING SYSTEM SLIDES UP OR DOWN, IN AND OUT TO MEET THE CROSS BAR. ONCE YOU'VE GOT IT SET - SIMPLY USE THE QUICK RELEASE CARABINER AND PULL IT TIGHT TO HOLD THE BIKE IN PLACE.

THE SOFT RUBBER PREVENTS ANY SCRATCHING AND DAMAGE TO YOUR BIKE, AND LIMITS ROAD VIBRATION.

TO USE OUR CENTRE STRAPS SIMPLY PULL THE STRAPS AROUND EACH WHEEL, ATTACH TO THE PIN WITH THE CARABINER, THEN PULL TIGHT.

THIS ACTION PULLS BOTH BIKE WHEELS INTO THE CENTRE AND VERTICALLY DOWN - NOT ALLOWING ANY SIDE TO SIDE MOVEMENT AT ALL.

AS AN ADDED LEVEL OF SECURITY WE ALSO HAVE A TIE DOWN STRAP FOR EACH WHEEL THAT GOES THROUGH OUR V CHANNEL AND AROUND THE WHEEL. WITH ALL 5 STRAPS PROPERLY SECURED, YOUR BIKE WILL NOT MOVE AT ALL - EVEN OVER THE ROUGHEST TERRAIN.

AND WITH ALL OUR STRAPS BEING QUICK RELEASE - LOADING AND UNLOADING IS A BREEZE.

WE HAVE DESIGNED OUR BIKE RACK TO SUIT ALL BIKES. INCLUDING THE HEAVY, MODERN FAT STYLE E BIKES, WITH A WHEEL BASE UP TO 1350MM. (MEASURED AXLE TO AXLE)

OUR WIDE WHEEL V CHANNEL IS 130MM WIDE, SO IT SUITS ALL MODERN FAT STYLE BIKES.

STEP THROUGH BIKES WITH NO CROSS BAR WILL REQUIRE AN AFTERMARKET BOLT ON BIKE CROSS BAR. (CLICK HERE TO VIEW SOME ONLINE)

IT IS ALWAYS BEST TO SECURE THE BIKE AS HIGH AS POSSIBLE TO REDUCE MOVEMENT WHILST TRAVELLING.

OUR RACK ALSO WILL SUIT:

• 16" KIDS BIKES
• ROAD BIKES WITH NARROW TYRES
• ALL TYPES OF MOUNTAIN BIKES

YOU'VE GOT THE FREEDOM TO CHOOSE.

When loading a single bike and using the offset bracket, we recommend you load the bike into the V Channel closest to the vertical support bars.

When loading 2 bikes of different weights, ensure the heaviest bike is loaded towards the vertical support bars.

When using the tilt bracket, you can load the bike into any V Channel as the vertical support bar is centred on the rack, and an offset is not provided.

Our offset bracket 'offsets' the weight, so it's important to keep the weight as close to the vertical support bars as possible.

You can bolt our Freedom 2 Bike Rack onto your rear bumper. Most bumpers are only 50 x 75mm, so we recommend resting the bike rack either onto a spare tyre, or another bracing method. The rear of a caravan will 'bounce' a lot more than the front and whilst its possible,correct bike loding must also be followed.

E-BIKES CAN BE HEAVY - AND WILL PUT A LARGE STRAIN ON BOTH OUR BIKE RACK, AND YOUR CARAVAN IF INCORRECTLY LOADED.

TO ENSURE YOU GET IT RIGHT, FOLLOW THE INSTRUCTIONS IN OUR BIKE LOADING DIAGRAM.
